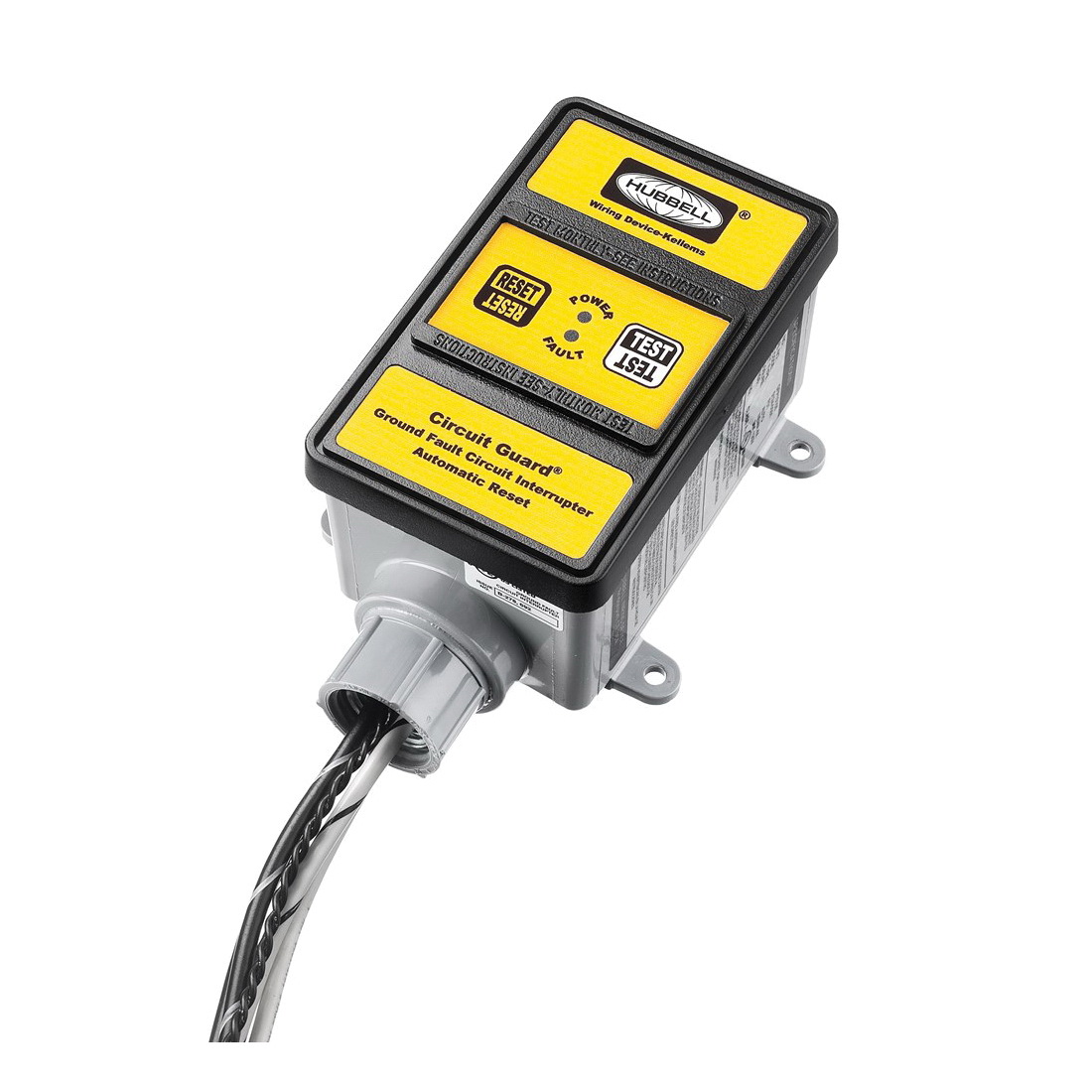

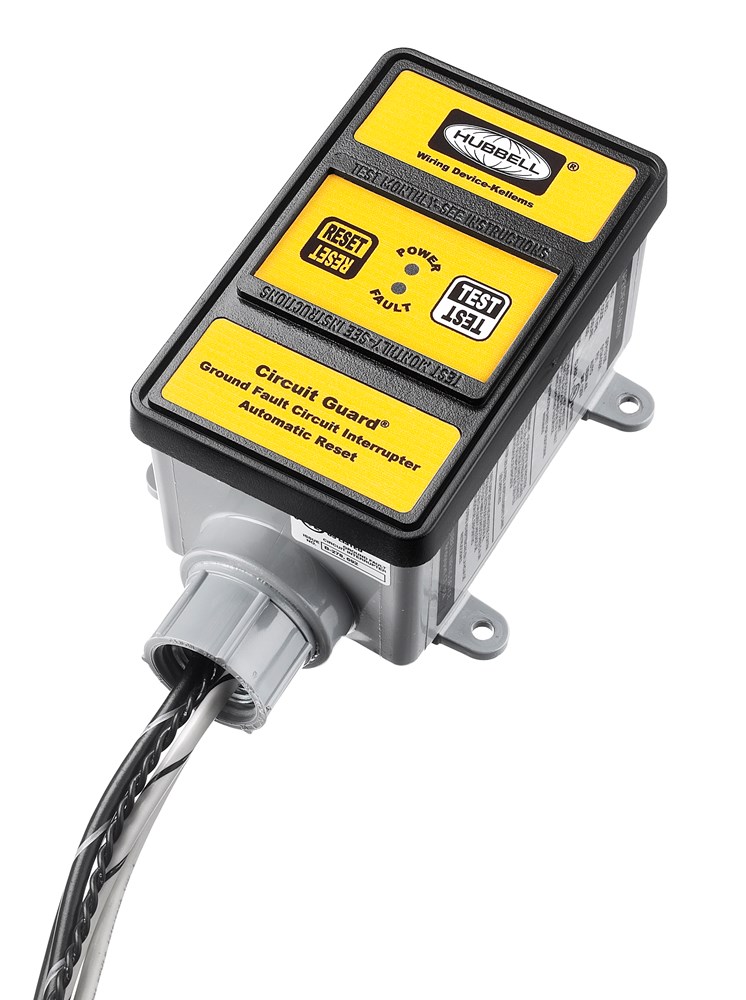

Wiring Device-Kellems Circuit Guard® Hard Wired GFCI, 3-Wire Automatic Multi-Strand Industrial Grade, 240 VAC, 30 A, 7200 W Power, -30 to 150 deg F, NEMA 4X Enclosure, Thermoplastic, Black/Yellow, 24 in L Dimensions

• Automatically energizes or sets the GFCI for use once power is applied to the circuit
• After a ground fault condition, unit must be reset by pushing the reset button
• This feature eliminates the need for the unit to be reset each time the power is turned on
• Automatic reset is ideal where temporary power failure is likely and undesirable such as waste water treatment plants, portable signs and some pump applications
• Offers a 4 to 6 mA trip level
• The alarm alerts you if a ground fault has occurred and the GFCI has tripped
• The alarm may be disabled or wired into a switch so that the customer has the choice of use or non-use
• Green light illuminates when unit has power and no ground fault is present
• Red light begins blinking when a ground fault is detected and the output power is interrupted

• Full Engineering Drawing https://assets.unilogcorp.com/2/ITEM/DOC/Wiring_Device_Kellems_GFHW23005_Technical_Drawing.pdf
• Specification Sheet https://assets.unilogcorp.com/2/ITEM/DOC/Wiring_Device_Kellems_GFHW23005_Datasheet.pdf
