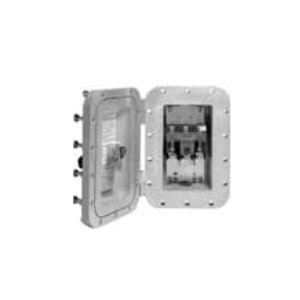

DS362FX Fusible Heavy Duty Disconnect Switch, 600/480 VAC, 250 VDC, 60 A, 10 hp, 30 hp, 50 hp, TPST Contact, 3 Poles
| Branch Name | Available |
|---|
The safety switch flex center is a special facility at the site of our Cleveland, Tennessee, plant that is dedicated to providing customized safety switches that meet customer challenging applications.
EATON Disconnect Switch, Fusible Heavy Duty, 600/480 VAC, 250 VDC, 60 A, 10 hp, 30 hp, 50 hp, 3 Pole, 10 kA Short Circuit, TPST Contact Form, Handle Actuator, NEMA 7/9 Enclosure, Surface Mounting, Line/Load Terminal, 55 deg C, 9.9 in L x 12.53 in W x 16.53 in H Dimensions, Cast Aluminum
| Actuator Type | : | Handle |
| Dimensions | : | 9.9 in L x 12.53 in W x 16.53 in H |
| Enclosure Type | : | NEMA 7/9 |
| Material | : | Cast Aluminum |
| Mounting Type | : | Surface |
| Short Circuit Current Rating | : | 10 kA |
| Temperature Rating | : | 55 deg C |
| Terminal Type | : | Line/Load |
| Type | : | Fusible Heavy Duty |
| Voltage Rating | : | 600/480 VAC, 250 VDC |
| Amperage Rating | : | 60 A |
| Horsepower | : | 10 hp, 30 hp, 50 hp |
| Contact Form | : | TPST |
| Number of Poles | : | 3 |
