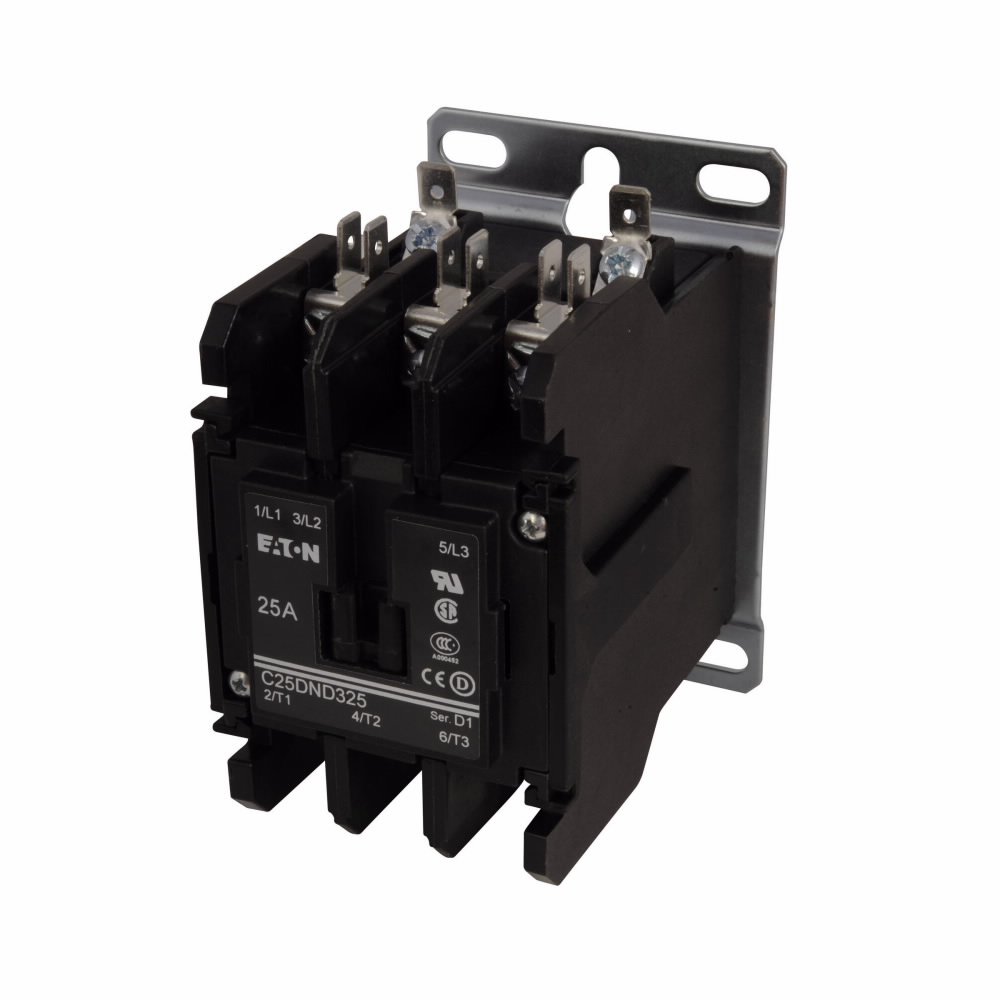

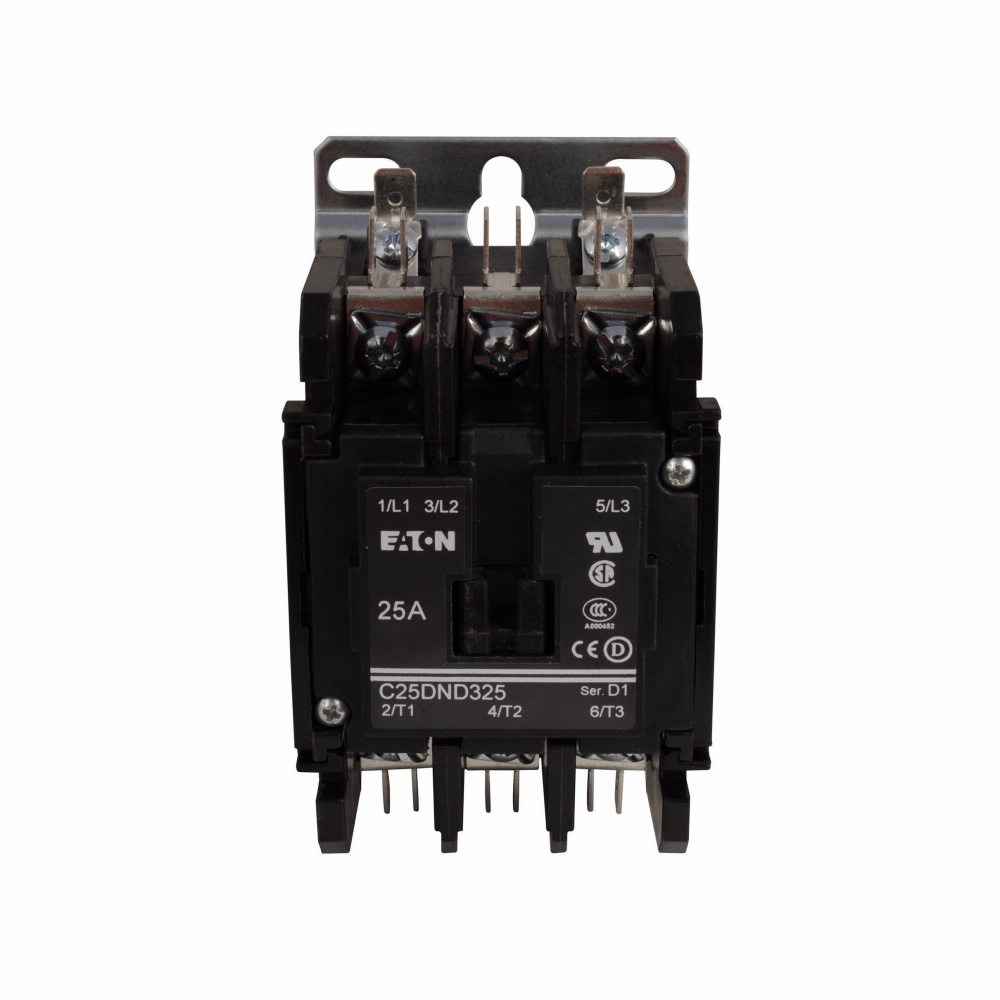

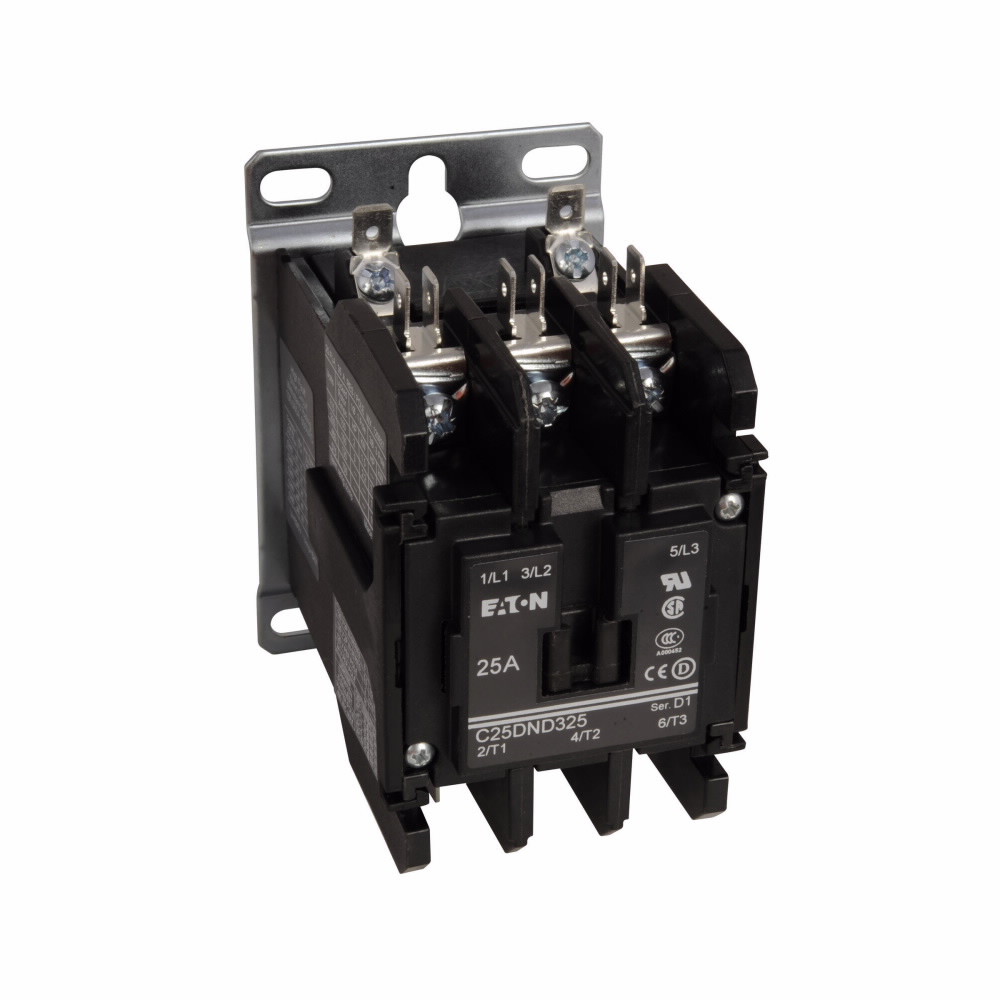

C25DND325A D-Frame Non-Reversing Definite Purpose Control Contactor, 110/120 VAC V Coil, 25 A Inductive, 35 A Resistive, 3 Poles
| Branch Name | Available |
|---|
Definite purpose starters are electrically operated switching devices specifically designed for the heating, ventilation, air conditioning and refrigeration (HVAC) industry. They are controlled by automatic thermostat control or manual pushbutton interfaces.
EATON Definite Purpose Control Contactor, D-Frame Non-Reversing, 110 to 120 VAC at 50/60 Hz Coil, 25 A Inductive/35 A Resistive Maximum Load Current, 3 Pole, Double Break Contact, Quick-Connect (Side-By-Side), Pressure Plate/Screw Terminal, Open Enclosure, 300000 Cycles Operating Cycles, 150 deg F Operating, Surface Mount, 3.35 in L x 2.4 in W x 3.75 in H
| Connection Type | : | Quick-Connect |
| Contact Type | : | Double Break |
| Dimensions | : | 3.35 in L x 2.4 in W x 3.75 in H |
| Enclosure Type | : | Open |
| Frequency Rating | : | 50/60 Hz |
| Mounting Type | : | Surface |
| Operating Cycles | : | 300000 |
| Operating Temperature | : | 150 deg F |
| Terminal Type | : | Pressure Plate/Screw |
| Type | : | D-Frame Non-Reversing |
| Coil Voltage | : | 110/120 VAC |
| Maximum Load Current | : | 25 A Inductive, 35 A Resistive |
| Number of Poles | : | 3 |
