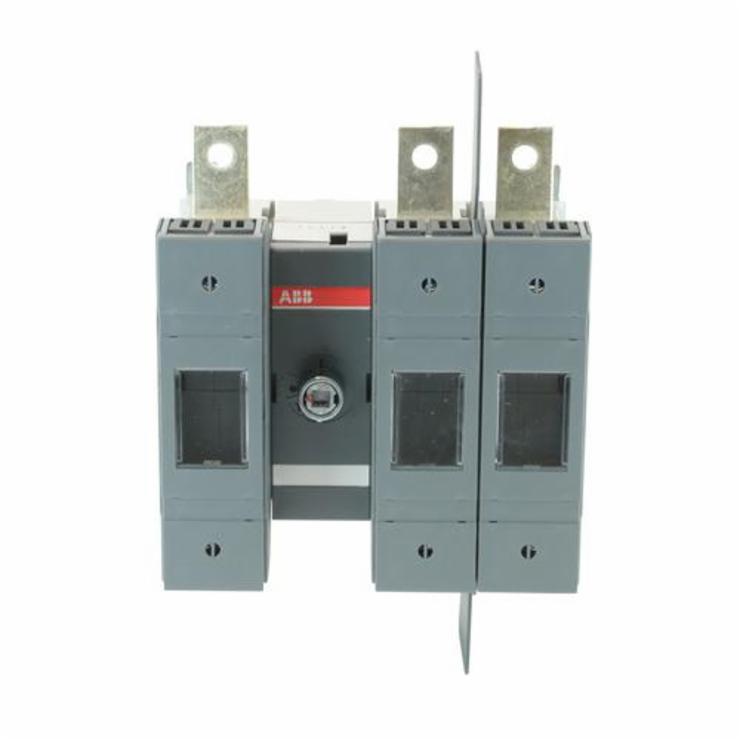

ABB OS100GJ12 Fusible Disconnect Switch, 600 VAC, 100 A, 30 hp at 240 VAC, 60 hp at 480 VAC, 75 hp at 600 VAC, Open Contact, 3 Poles
| Branch Name | Available |
|---|
OS and OSM switch fuses by ABB have been designed to deliver world-class performance in even the most extreme conditions. Our extensive range of reliable switch fuses, both manual and motorized, is ensured to have your application needs covered.
ABB Disconnect Switch, Fusible, Series: OS Series, 600 VAC, 100 A, 30 hp at 240 VAC, 60 hp at 480 VAC, 75 hp at 600 VAC, 50 Hz Frequency, 3 Pole, 25.5 kA Short Circuit, Open Contact Form, Class J Insulation, Surface Mounting, Lug Terminal, 35 deg C, 172 mm H x 147 mm W x 105 mm D Dimensions
| Dimensions | : | 172 mm H x 147 mm W x 105 mm D |
| Frequency Rating | : | 50 Hz |
| Insulation Type | : | Class J |
| Mounting Type | : | Surface |
| Series | : | OS Series |
| Short Circuit Current Rating | : | 25.5 kA |
| Temperature Rating | : | 35 deg C |
| Terminal Type | : | Lug |
| Type | : | Fusible |
| Voltage Rating | : | 600 VAC |
| Amperage Rating | : | 100 A |
| Horsepower | : | 30 hp at 240 VAC, 60 hp at 480 VAC, 75 hp at 600 VAC |
| Contact Form | : | Open |
| Number of Poles | : | 3 |
