62051J Open Style Fuse Holder, 600 VAC/VDC, 200 A, 6 AWG to 350 kcmil Wire, 1 Pole
| Branch Name | Available |
|---|

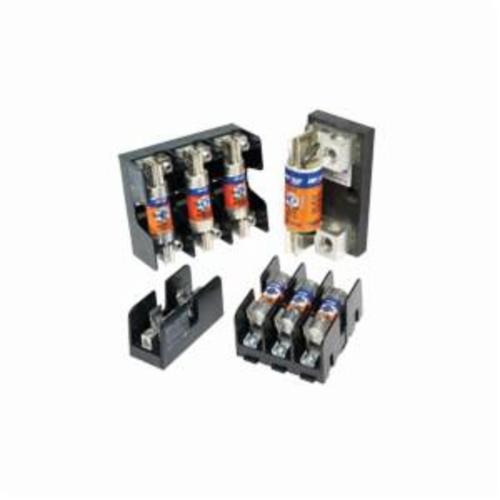

Mersen open style Class J fuse blocks accommodate all Class J fuses ranging from 0 to 600 A, 600 V. A choice of screw, pressure plate, box and special order stud connectors fit a wide range of stranded or solid copper or aluminum wire. Insulators are either molded glass filled polycarbonate (GFPC) or phenolic with verified dielectric strength in excess of 2500 V. SJ fuse blocks are more compact than the traditional offering and feature a unique adder block configuration for multi-pole field assembly. All fuse clips are made of high conductivity tin plated copper, with a choice of spring reinforced or non-spring reinforced clips.
Ferraz Shawmut Fuse Holder, Open Style, 600 VAC/VDC, 200 A, 1 Pole, Class: J, Box Side Clip, 6 AWG to 350 kcmil Wire, Threaded Mount, For Use With: Class J Fuse, Glass Reinforced Polycarbonate, 6.13 in L x 3 in W x 2.9 in H
| Connection Type | : | Box Side Clip |
| Dimensions | : | 6.13 in L x 3 in W x 2.9 in H |
| Material | : | Glass Reinforced Polycarbonate |
| Mounting Type | : | Threaded |
| Suitable For Use With | : | Class J Fuse |
| Type | : | Open Style |
| Voltage Rating | : | 600 VAC/VDC |
| Amperage Rating | : | 200 A |
| Class | : | J |
| Wire Size | : | 6 AWG to 350 kcmil |
| Number of Poles | : | 1 |
