DR series plugs and receptacles provide safe, economical and robust connections for applications up to 400 A. Some DR models are non-current interrupting rated, while others are suitable for current interruption on resistive loads. The DR's spring loaded, silver nickel butt contacts and dead front construction provide more consistent and reliable connections and significant improvements in operator safety compared to competitive devices.

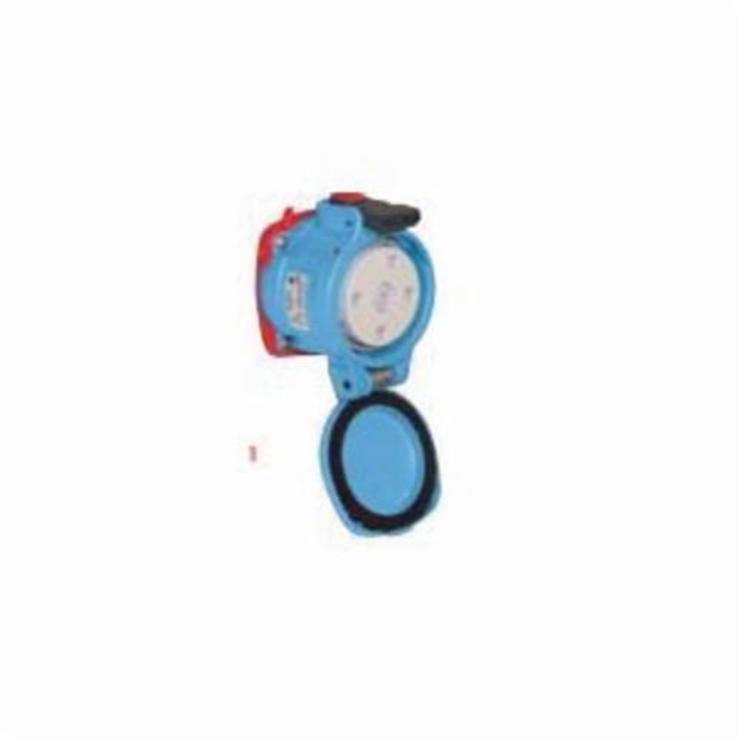

MELTRIC Female Receptacle, Standard Duty, Series: 31-34183-K14 DR50, 347/600 VAC, 50 A, 60 Hz, 3 Pole, 4 Wires, NEMA 3R, IP54/IP55 Enclosure, -40 to 140 deg F, Screw Terminal, Polyester, Blue, 3.15 in Dia x 3.53 in L

• High amperage capacity
• Up to 6 auxiliary contacts
• Spring assisted screw terminals patented design assures ''tighten and forget'' confidence
• Spring loaded butt-style contacts ensures optimal contact force and superior electrical performance over thousands of operations
• Lid provides Type 3R water protection for additional protection from harsh environments
• OFF button press to de-energize and provides push button circuit disconnection
• Dead front/safety shutter assures safety by preventing user access to live parts
• 100 kA short circuit rated
