O-Z/Gedney Spec 5™ Conduit Bodies, Covers and Gaskets are used to connect and change direction of conduit runs. In addition to making bends in a conduit system, they allow connections for branch runs. These conduit bodies serve as pulling fittings and permit access to conductors for splicing and maintenance.

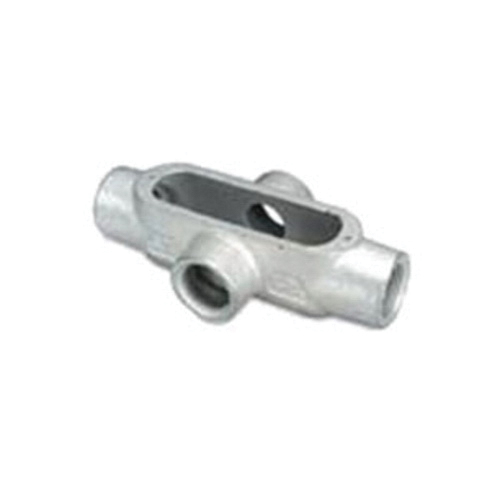

O-Z/Gedney Spec 5™ Conduit Outlet Body, Type X, 1/2 in Hub, 4 Hubs, 6 cu-in Capacity, NEMA FB-1 Enclosure, Tapered FNPT Connection, Surface Mounting, Malleable Iron, Zinc Electroplated/Aluminum Enamel Finish, 5-3/8 in L x 2-3/4 in W x 1-3/8 in H Dimensions

• Smooth, rounded integral bushing in hubs protects conductor insulation
• Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
• Form 35™ malleable iron UNILETS™ are high tensile strength and ductility
• High corrosion resistance, high impact and shock resistance
• Sizes with flat back design ideal where fitting is mounted flat against surface
• Raintight when an Appleton™ cover and gasket are installed
• Tapered threaded hubs (NPT)
• Raintight when used with gasketed covers
• Internal volume and maximum wire capacity clearly marked on castings
• Complete interchangeability with other manufacturers style 5 or 35 conduit bodies
• Malleable iron suitable for use in concrete
