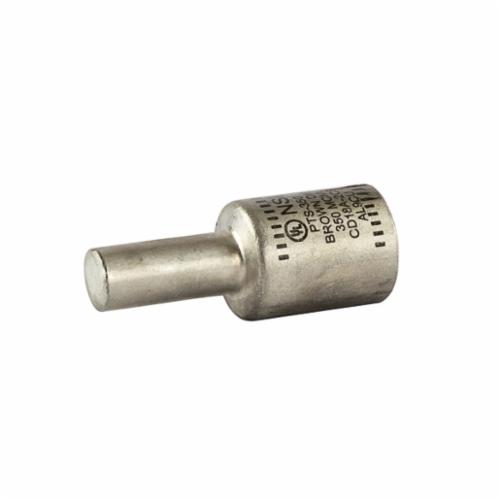

PTS350 Dual Rated Solid Pin Terminal, 350 kcmil Conductor, 0.57 in Dia x 1.33 in L Pin, Aluminum
| Branch Name | Available |
|---|
NSI Solid Pin Terminal, Dual Rated, Series: PTS, 350 kcmil Conductor, Brown Color Code, 0.57 in Pin Diameter, 1.33 in Pin Length, 1.4 in Barrel Length, 600 VAC, Specifications: 90 deg C Temperature, 1 Pole, 1 Conductor, 0.716 in ID x 1.09 in OD Barrel, Plastisol Cover Insulation, Tin Plated Finish, Aluminum, 2.74 in L Dimensions
| Barrel Length | : | 1.4 in |
| Color Code | : | Brown |
| Dimensions | : | 2.74 in L |
| Series | : | PTS |
| Specifications | : | 90 deg C Temperature, 1 Pole, 1 Conductor, 0.716 in ID x 1.09 in OD Barrel, Plastisol Cover Insulation, Tin Plated Finish |
| Type | : | Dual Rated |
| Voltage Rating | : | 600 VAC |
| Conductor Size | : | 350 kcmil |
| Pin Diameter | : | 0.57 in |
| Pin Length | : | 1.33 in |
| Material | : | Aluminum |
