B-Line 817A-24-144

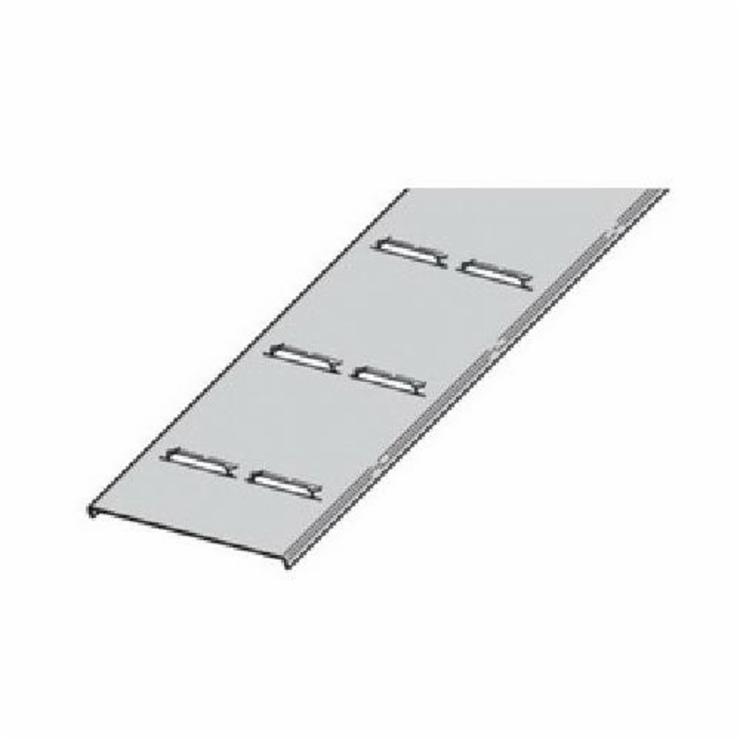

B-Line 817A-24-144 Flange Straight Section Cable Tray Cover, 24 in W Tray, Aluminum, Ventilated Top

  • MPN: 817A-24-144
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading loading
B-Line 817A-24-144

B-Line Cable Tray Cover, Flange Straight Section, 24 in Tray Width, 12 ft Length, Ventilated Top, For Use With: Series 2, 3, 4 and 5 Cable Tray System, Aluminum

Length      :      12 ft
Suitable For Use With      :      Series 2, 3, 4 and 5 Cable Tray System
Type      :      Flange Straight Section
Tray Width      :      24 in
Material      :      Aluminum
Top Style      :      Ventilated
  • Ventilated covers provide an overhead cable shield, yet allow heat to escape
  • Recommend that covers be placed on vertical cable tray runs to a height of 6 to 8 ft above the floor to isolate both cables and personnel
  • Flanged covers have a 1/2 in flange
  • Cover clamps are not included with the cover and must be ordered separately
