Non Stock

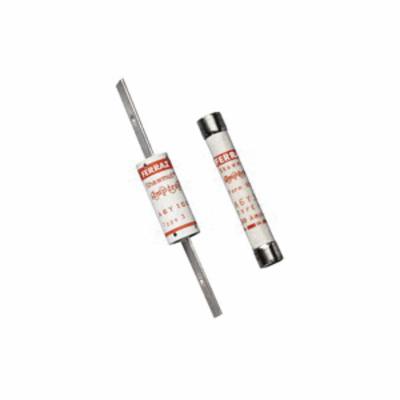

A6Y30-1 Form 600 DC Fuse, 30 A, 600 VAC/500 VDC, 100/200 kA, Class H, Cylindrical Body
| Branch Name | Available |
|---|
Mersen Form 600 fuses are the original current limiting fuses, pre-dating all the standards. Their 500 VDC rating (through 600 A) is a useful feature for special fusing applications. Form 600 fuses provide a high degree of current limitation in AC and DC applications. Types 1 and 3 are dimensionally interchangeable with Class H and K fuses. Types 4 and 5 have unique rejection dimensions and are not interchangeable.
Ferraz Shawmut DC Fuse, Form 600, Series: A6Y, 30 A, 600 VAC/500 VDC, 100/200 kA Interrupt, Class: H, Ferrule Terminal, Clip Mounting, Cylindrical Body, Fiber, 13/16 in Dia x 5 in L Body
| Body Size | : | 13/16 in Dia x 5 in L |
| Material | : | Fiber |
| Mounting Type | : | Clip |
| Series | : | A6Y |
| Terminal Type | : | Ferrule |
| Type | : | Form 600 |
| Amperage Rating | : | 30 A |
| Voltage Rating | : | 600 VAC/500 VDC |
| Interrupt Rating | : | 100/200 kA |
| Class | : | H |
| Body Type | : | Cylindrical |
Specification Sheet
