Mersen r-rated fuses are current limiting, high interrupting rating fuses intended for the short circuit protection of medium voltage motors and motor controllers. R-rated fuses are back-up fuses that have a minimum interrupting rating and must be coordinated with overload relays in combination motor starters. The motor starter manufacturer generally specifies the r-rated fuse size. These fuses are single, double, triple or quadruple barrels 3 in diameter with end mounts designed for bolting directly to equipment bus or terminal pads.

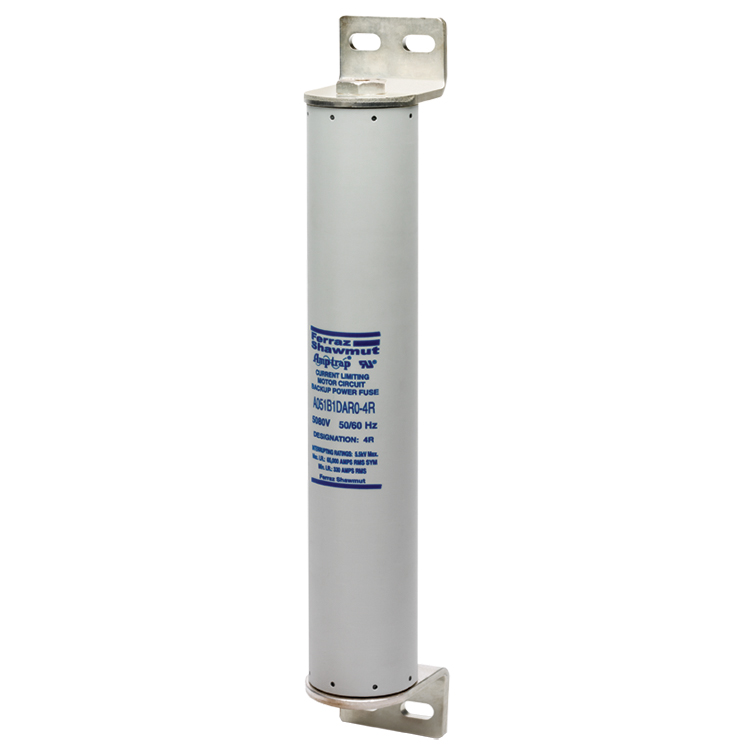

Ferraz Shawmut Amp-Trap® Motor Protection Fuse, 2-Barrel Back-Up Current Limiting Medium Voltage, Series: A051B, Indicating, 5080 VAC, 65 kA Interrupt, Class: R, Ferrule Terminal, Bolt-On Mounting, GMG, 3 in Dia x 19-1/4 in L Body

• The Amp-Trap® bolt-in series are UL recognized
• Bolt-in mounting for direct connection to bus or terminals
• Current limiting for superior equipment protection
• Metal embossed catalog number and manufacturing date for lasting identification
• Blown fuse indicator to give positive identification of open fuse
• Amp-Trap® 3 in barrel 2 lb tripped force - 0.5 in
• 32R size

• Full Engineering Drawing https://assets.unilogcorp.com/2/ITEM/DOC/Ferraz_Shawmut_A051B2DAR0_32R_Full_Engineering_Drawing.pdf
• Specification Sheet https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_ce7dba38e625350e6e31a386c40944709f503f8dbc5856649c0ec671a94c7807.pdf
