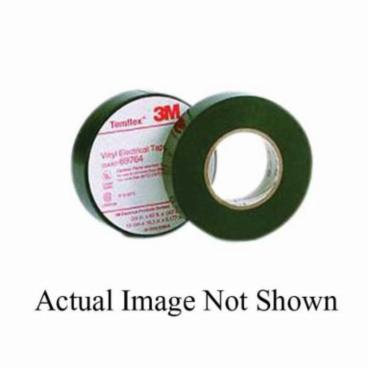

Temflex™ 051141-04480 General Grade Electrical Tape, 60 ft L x 3/4 in W, 7 mil THK, Vinyl, Rubber Adhesive, PVC Backing, Black
| Branch Name | Available |
|---|
3M™ Temflex™ Tape 1776 is a 7 mil THK, general purpose, vinyl electrical tape that is made in the USA. It provides primary electrical insulation for all wires and cable splices up to 600V. This flame-retardant tape withstands a temperature range of 32 to 176 de F. An economical, general purpose, vinyl, insulating tape. It provides excellent mechanical protection with the combination of a rubber resin adhesive and PVC backing. This tape is flame-retardant and highly resistant to moisture, alkalis, acids, copper, corrosion and varying weather conditions. It is used as protective jacketing for high voltage cable splices and repairs. This tape is ideal for harnessing cables/wires and indoor/outdoor applications.
Temflex™ Electrical Tape, General Grade, 60 ft Length, 3/4 in Width, 7 mil Thickness, Vinyl, Black, 1-1/2 in Diameter Core, Rubber Adhesive, PVC Backing, 24 in-oz Adhesion Strength, 1000 V/mil Dielectric Strength, 17 in-lb Tensile Strength, 80 deg C Maximum Operating, 0 deg C Minimum Operating, Specifications Met: UL 510, CSA C22.2 Certified
| Adhesion Strength | : | 24 in-oz |
| Core Diameter | : | 1-1/2 in |
| Dielectric Strength | : | 1000 V/mil |
| Maximum Operating Temperature | : | 80 deg C |
| Minimum Operating Temperature | : | 0 deg C |
| Specifications Met | : | UL 510, CSA C22.2 Certified |
| Tensile Strength | : | 17 in-lb |
| Type | : | General Grade |
| Length | : | 60 ft |
| Width | : | 3/4 in |
| Thickness | : | 7 mil |
| Material Type | : | Vinyl |
| Adhesive Material | : | Rubber |
| Backing Material | : | PVC |
| Color | : | Black |
